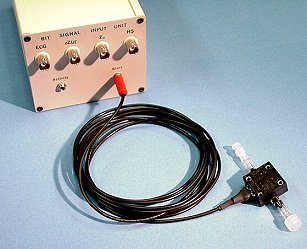

COP-BPSW connected to SIU

The COP Blood Pressure (BP) Remote Start Sensor is an optional accessory that is useful when using COP_WIN simultaneously with a blood pressure monitor. This sensor enables COP_WIN to automatically synchronize the impedance measures and computed cardiac indices with the blood pressure measures when using any blood pressure monitor. This is accomplished by connecting the BP Sensor to the SIU's remote- start input jack. The BP sensor is a 1.0" square by 0.5" thick pressure transducer that is inserted in series with the air-hose connected to a blood pressure cuff (please see diagram below). When the pressure in the BP cuff reached 80mmHg, the COP-BPSW sensor sends a signal to COP_WIN, causing it to begin an ensemble-average measurement. The COP-BPSW sensor is NOT automatically included as part of the COP_WIN Software System Package or the HIC-2000.

For specific installation information and product description, please see COP-BPSW set-up information on our Applications Information web page.

COP-BPSW diagram
